TE03
Todly
24V/220V
400N
100-1000mm or Customized
14mm/s
IP20
| Availability: | |
|---|---|

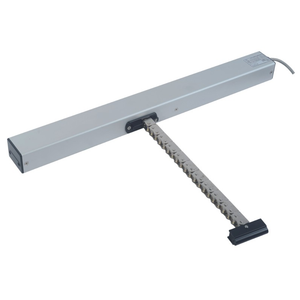

The chain type window opener occupies a small space, and is mainly used in various types of windows that need to be opened for ventilation or smoke exhaust, such as top-hung windows, bottom-hung windows, and some middle-hung windows. Because of its compact structure, it is especially suitable for opening bottom-hung windows, but for When the window is wide and large, the electric lock mechanism should be used to ensure the airtightness of the window. The chain window opener can be built into the window frame, which is simple and beautiful.
| Specifications | |
| Model No. | TE03 |
| Product name | Chain Window Opener |
| Stroke | 100-1500mm |
| Speed | 14mm/s |
| Max. dynamic load | 400N |
| Max. static load | 400N |
| Working voltage | DC12V/DC24V/AC220V |
| Working current | 1.2A/0.2A |
| Standard color | Silver |
| IP rating | IP32 |
| Noise level | 55db |
| Operating temperature | -20°C to +40°C |
| Standard size options- TE03 Chain window openers | |||
| Model No. | Stroke | Install dimension | Voltage |
| TE03-003 | 400mm | 450mm | 24V |
| TE03-005 | 600mm | 560mm | 24V |
| TE03-050 | 700mm | 610mm | 24V |
| TE03-276 | 1350mm | 960mm | 24V |
| TE03-278 | 1500mm | 1060mm | 24V |
1. Voltage: DC12V, DC24V, AC110V, AC220V
2. Color: Black, grey or according to the Pantone
3. Stroke: 100-1500mm
4. Logo print on label or cartons
5. More points, please feel free to contact us
1. The electric push rod does not work
①. Check whether the power supply is in the energized state;
②. Check whether the AC line or DC line is damaged, crimped, etc.;
③. Check that the circuit is connected correctly;
④. Check whether the electric push rod or the control part is disassembled and analyzed to see if it works normally.
2. Abnormal noise from the electric push rod
①, motor noise;
②, the chain shakes too much;
③. Abnormal coordination of internal gear components.
