24VDC
800N
50-1500mm
9mm/s
IP65
*Minimum installation size: L = stroke S + 260mm, which can be customized according to user
Requirements.
*A variety of accessories adapt to different installation requirements, with strong compatibility.
* The life design of more than 30,000 cycles has passed the load test.
* Fully enclosed internal thread drive structure, good sealing, suitable for use in environments
where air particles such as dust and sand are polluted.
* Built-in travel electronic overload protection circuit, and can be driven by multiple windows
connection. Electric smoke exhaust window is preferred.
* Protection level：IP65.
* The installation procedure is simple, and the opening stroke is 50-1000mm, which can be
customized according to user needs.
* The product conforms to the national standard: GB / T 19001-2008, and has passed the EU CE
certification and China National Fire Electronics Certification.

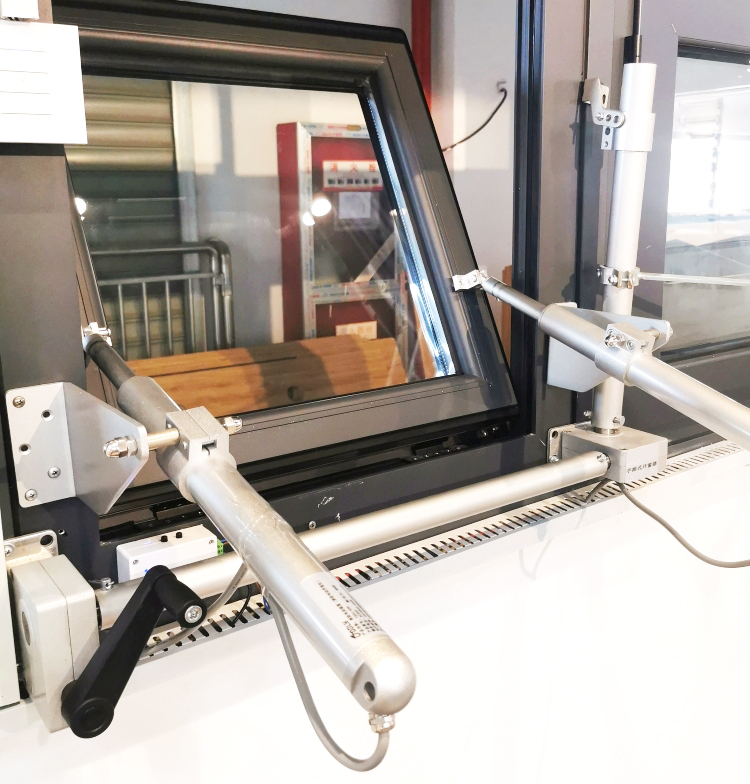

* With strong pull force, and be mostly used for fire smoke exhaust windows and heavy skylights.
Product name | Model No. | Stroke | Voltage | Curren | Pull | Speed |
|---|---|---|---|---|---|---|
| Electric Screw Window Opener | TE01-2-XXX | 50~1500mm | DC24V±15% | 0.9A | 800N | 5mm/s |
| TE01-1-XXX | DC12V±15% | 0.7A | 400N | 2.5mm/s |
| MODEL NO. | Input Voltage | Stroke | Installation Size |
|---|---|---|---|
| TE01A-016 | DC24V | 400mm | 695mm |
| TE01A-015 | DC24V | 300mm | 595mm |
| TE01A-011 | DC24V | 700mm | 995mm |
| TE01A-021 | DC24V | 500mm | 792mm |
| TE01A-030 | DC24V | 200mm | 478mm |
| TE01A-033 | DC24V | 400mm | adjustable |
| TE01A-022 | DC24V | 600mm | 895mm |
* Stroke : 50-1500mm, or custom
* Color : Silver, black, gold, or custom
* Tube material : Aluminum / stainless steel
* Logo: Laser, label, or custom
* For personalized customization, please feel free to contact me.
1. When installed on the window, the window is not closed or opened in place
① The installation stroke of the actuator is wrong.
② The proper position of the hoop was not measured when the hoop was used for installation.
2. Continuous shaking after the window is closed
① The hoop is not installed in place.
② For the linear actuator without hoop, it may be that the installation size of the actuator is wrong.
