24VDC
1000N
50-1500mm
32mm/s
IP65
* The product material adopts the national standard aluminum profile, and the American
standard waterproof gasket has high performance waterproof function.* The lowest temperature of the special grease of the product can reach -45 ℃ and the highest
can reach + 65 ℃.
* Stroke: 50-1500 mm (customized). The compact design with small installation space. The
minimum installation size L = stroke S + 105mm, can be customized according to requirements.
* Protection level: IP65.
* There are two kinds of power supply voltage: 24VDC and 12VDC for users to choose.
* With built-in limited switch.
* The screw adopts high-precision screw with high strength to resist wear and corrosion.
* The product is equipped with a brake (limit position) to effectively prevent the use of the
product after the screw reaches the top. It has a self-locking capacity and is powerful. It also has
effective travel control and achieves high precision requirements.
* The product uses an all-metal casing and high-strength wear-resistant gears. The gears are
made of powder metallurgy with a single noise-reducing material which makes the product has
high strength, wear resistance, and long life.
* The locking force at rest is greater than 1000N.
* A variety of speed ratios, you can choose a variety of speeds and push-pull force.
* The product complies with the national standard: GB16806-2006, and has passed the
inspection of the "National Fire Electronics Quality Supervision and Inspection Center".
| Product Name | Model No. | Stroke | Voltage | Revolving Speed | Ratio | Current | Pull | Speed |
|---|---|---|---|---|---|---|---|---|

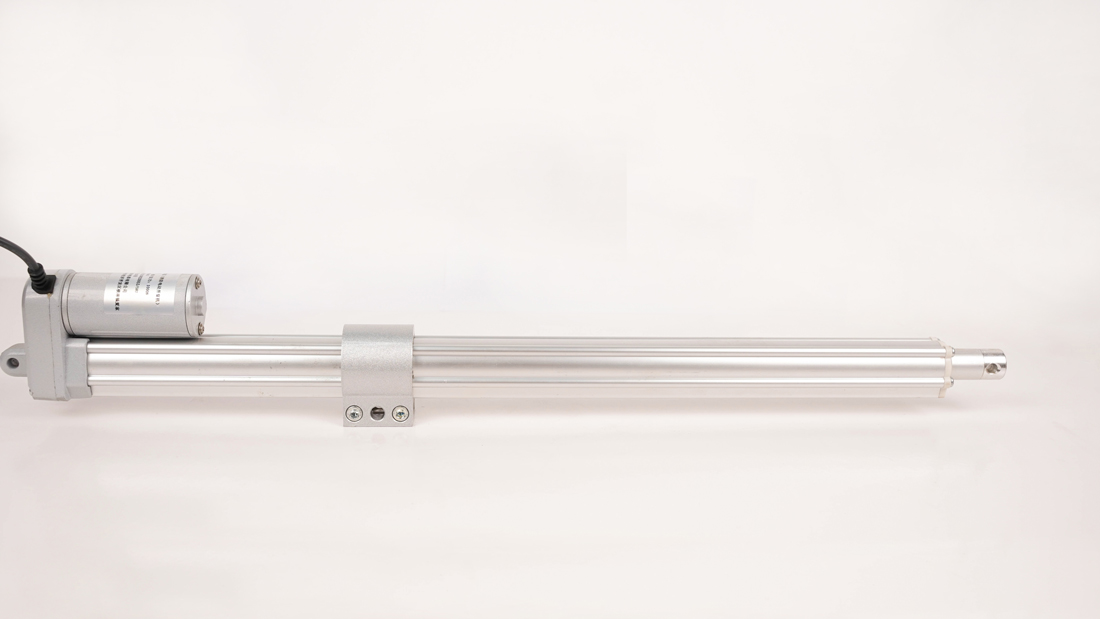

| Waterproof linear actuator | TE02-2E-XXX | 50~1500mm | DC24V±15% | 4200r/pm | 1.40 | 1.0A | 1000N | 5mm/s |
TE02-1E-XXX | DC12V±15% | 2100r/pm | 500N | 2.5mm/s |
| MODEL NO. | Voltage | Ratio | Stroke | Installation Size |
|---|---|---|---|---|
| TE02-287 | DC24V | 1:40 | 300mm | 415mm |
| TE02-353 | DC12V | 1:40 | 38mm | 143mm |
| TE02-390 | DC24V | 1:20 | 600mm | 720mm |
| TE02-398 | DC24V | 1:20 | 400mm | 520mm |
| TE02-401 | DC24V | 1:40 | 700mm | 820mm |
| TE02-549 | DC24V | 1:30 | 500mm | 670mm |
| TE02-557 | DC36V | 1:20 | 187mm | 285mm |
| TE02-636 | DC24V | 1:40 | 500mm | 650mm |
| TE02-394 | DC24V | 1:40 | 100mm | 250mm |
| TE02-395(wheelchair) | DC24V | 1:40 | 50mm | 160mm |
* Stroke : 50-1500mm, or custom
* Color : Silver, black, gold, or custom
* Tube material : Aluminum / stainless steel
* Logo: Laser, label, or custom
* For personalized customization, please feel free to contact me.

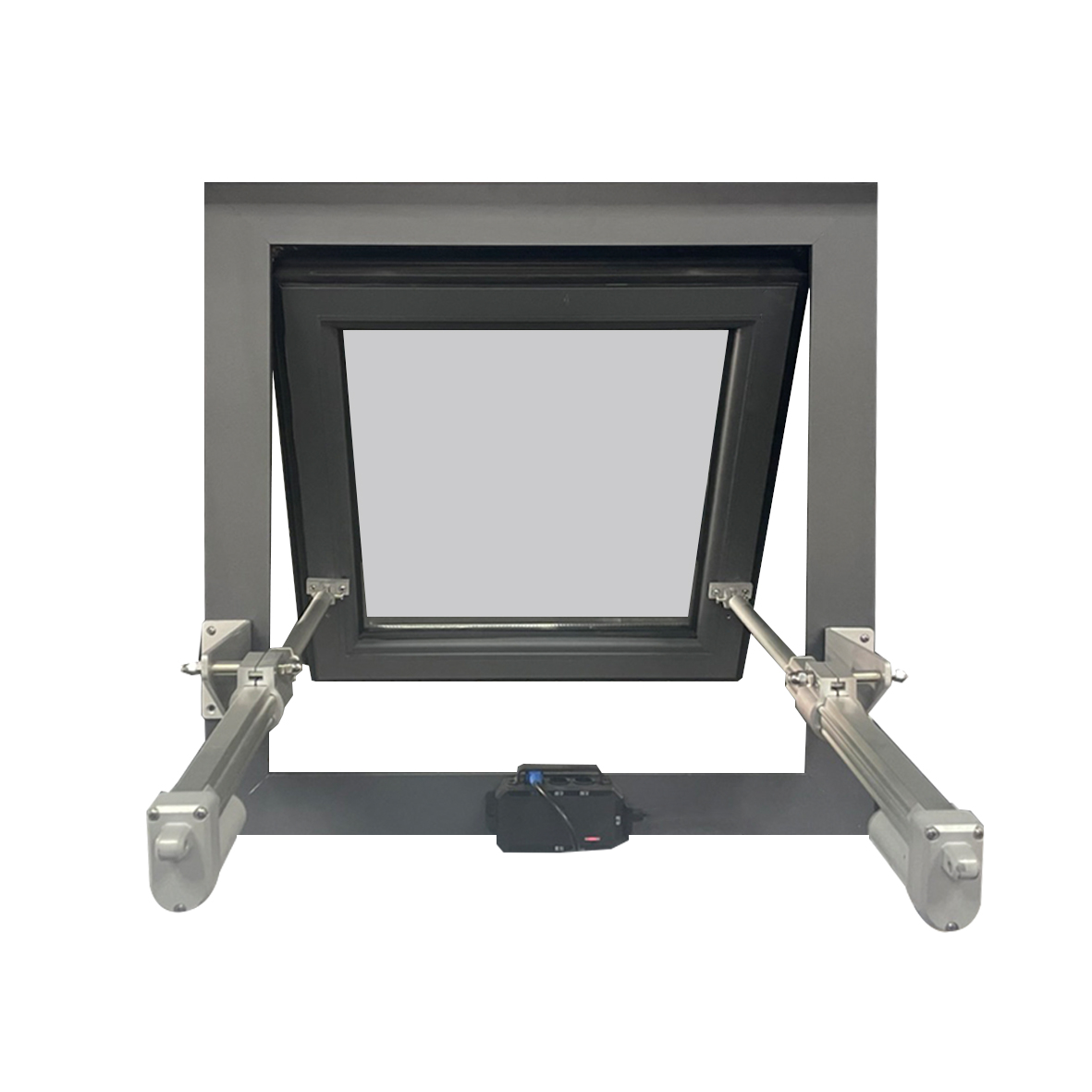

1. When installed on the window, the window is not closed or opened in place
① The installation stroke of the actuator is wrong.
② The proper position of the hoop was not measured when the hoop was used for installation.
2. Continuous shaking after the window is closed
① The hoop is not installed in place.
② For the linear actuator without hoop, it may be that the installation size of the actuator is wrong.
Waterproof Linear Window Opener TE02 product specification-Jiangsu MULIN.pdf
